Badestnost 03 Z50 A ES3 12VDC Hydraulic Directional Control Valves


Badestnost 03 Z50 A ES3 12VDC hydraulic directional electric control valves 3banks 13gpm

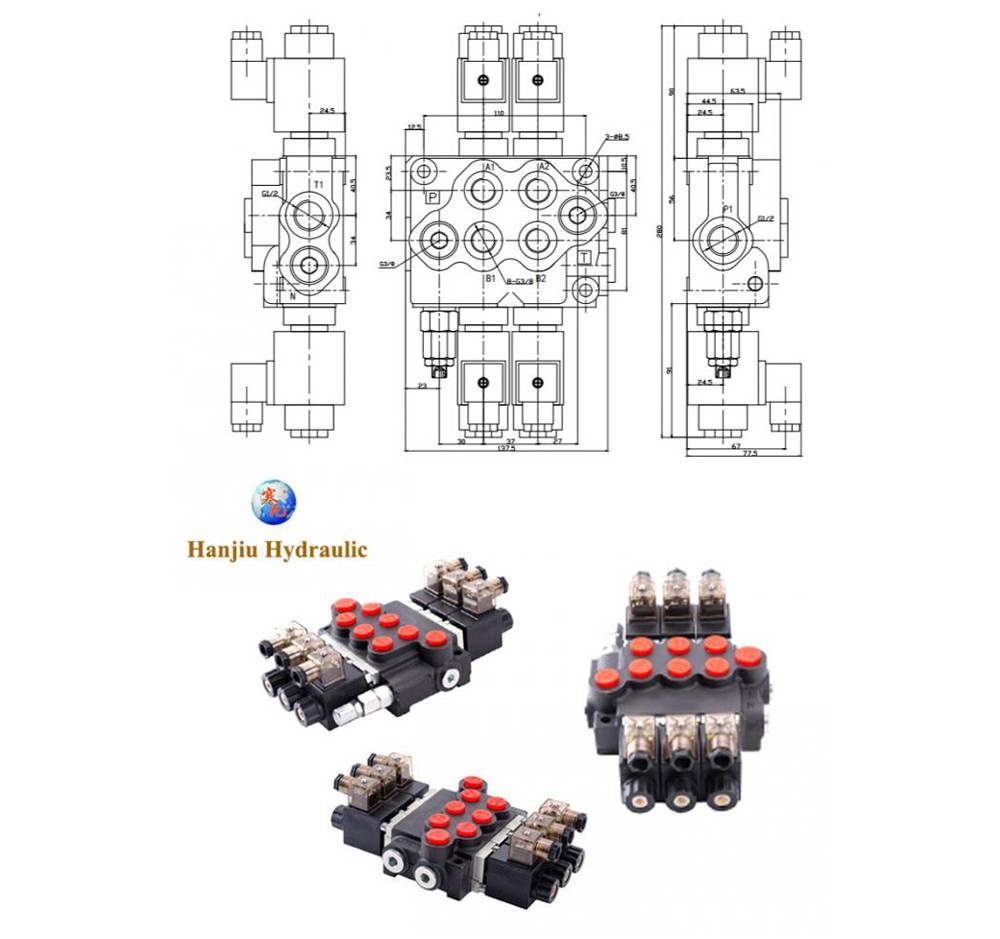

Hydraulic Monoblock Solenoid Control Valve 3 Spool, 13 GPM, 12V DC
Monoblock direct acting solenoid control valve that offer perfect choice whether you are designing a new system or just trying to get more out of your existing system. With 3 sections in a mono block housings, this valve can meet the specific needs of your application and hydraulic systems.


Fitted with a double acting spool as standard. 03 SD5 12VDC. Max operating pressure as follows.

A , B ports: 4300psi (300 bar). A, B ports: 3/8 BSPP. P, T port: 1/2 BSPP.


Operational Temperature: -40 TO +60. Relief valve setting: 180 bar standard (MAX = 250 BAR).

This item is in the category "Business & IndustrialHydraulics, Pneumatics, Pumps & PlumbingValves & ManifoldsDirectional Control ValvesStack Valves".


Common Uses:
Operate hydraulic cylinders (Double-Acting or Single-Acting): Grapples (Tilt/Raise Cylinders), Box Blade (Height Adjustment)
Install rear remotes on a tractor
Operate Winches (“A” Spool)
Raise/Lower Dump Truck Bed (“A” Spool)
Operate Cylinders for Snow Plows (“A” Spools)
A Spool (Controls Double Acting Cylinders)
All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders
A and B ports are closed to Tank in neutral position
