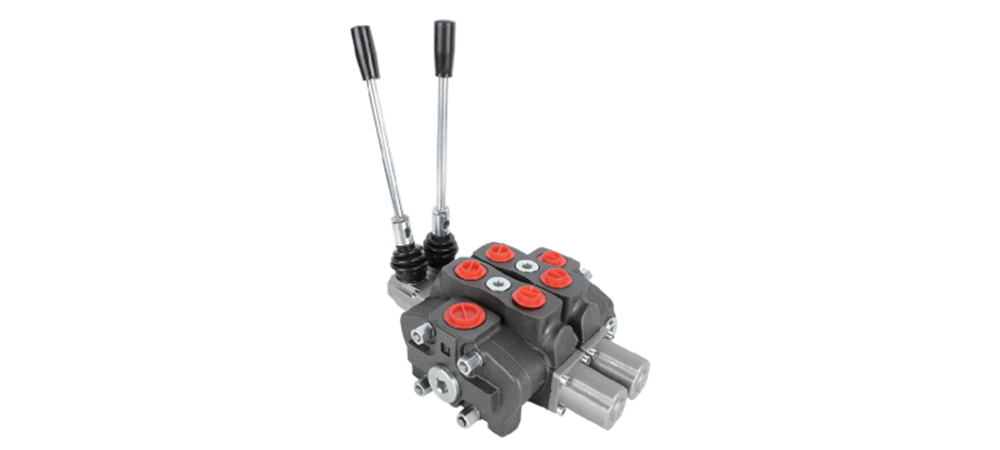

With advantages of compact structure, high pressure resistance and longservice life. the HSSD8 sectional hydraulic valve has two hydraulic systems:open center and closed center.Each valve body can be added with a reliefvalve, a supplement valve and a combination valve according to customer re-quirements.The control methods include manual control， pneumatic control,electro-hydraulic control, solenoid control,electro-pneumatic control， joysitckcontrol,and remote control, e tc., which can meet the differeni contro needsof customers.The valve is widely used in hydraulic systems of constructionmachinery. environmental sanitation machinery. mining machinery,agricultur-al machinery anc other types of machinery.
Specifications
| Nominal flow rate | 80L/min | 21US GPM | |
| Operatingpressure(max) | 315 bar | 4568psi | |
| operating range | 15～75 mm2/s | 15～75 cst | |
| Viscosity | min | 12 mm²/s | 12 cst |
| max | 400 mm2/s | 400 cst | |
| Ambient temperature range | -40°～80℃ | -40°～176°F | |
| Structure | Sectional:1~12sections | ||

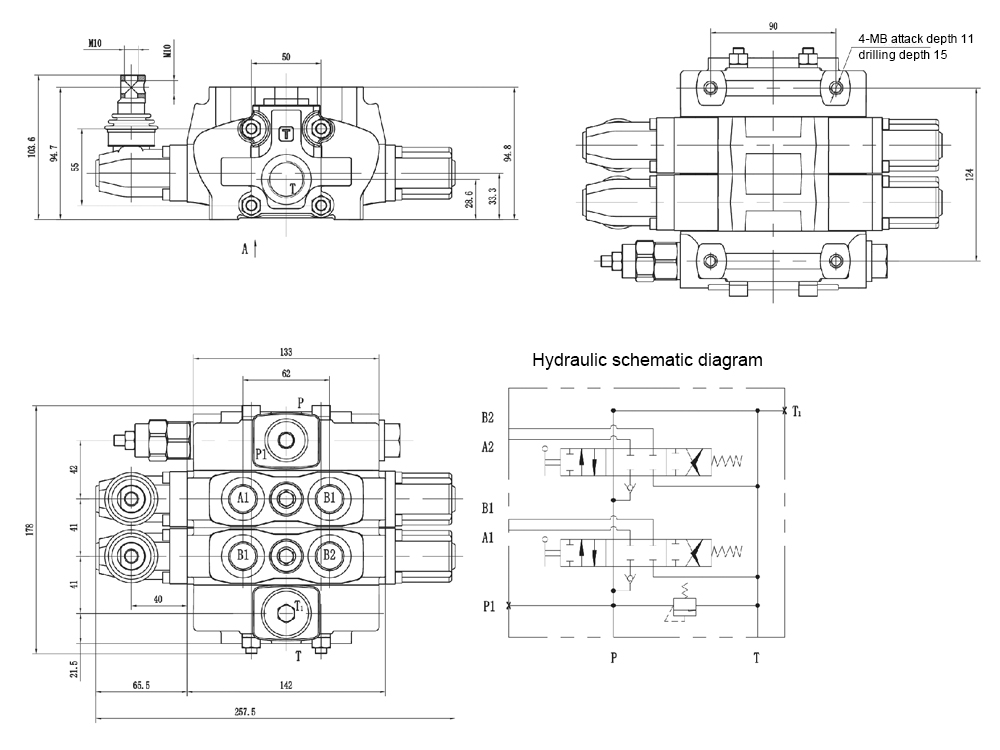

Dimension
