OMPW 100 HYDRAULIC MOTOR

2023-03-20

OMPW 100 motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.





Characteristic features:

*Advanced manufacturing devices for the Gerotor gear set, which provide

small volume, high efficiency and long life.

*Shaft seal can bear high pressure of motor of which can be used in parallel or in series.

*Advanced construction design, high power and low weight.





Main Specification

Technical data for BMPH with 25 and 1 in and 1 in splined and 28.56 tapered shaft

Geometric displacement (cm3/rev.) 96.2
Max. speed (rpm)  cont. 615
 int. 770
Max. torque (N•m)  cont. 182
 int. 227
 peak 264
Max. output (kW)  cont. 11.0
 int. 13.0
Max. pressure
drop(MPa)
 cont. 14
 int. 17.5
 peak 22.5
Max. flow (L/min)  cont. 60
 int. 75
 Weight (kg) 5.9



Main Specification

Technical data for BMPH with 31.75 and 32 shaft

Geometric displacement (cm3/rev.) 96.2
Max. speed (rpm)  cont. 615
 int. 770
Max. torque (N•m)  cont. 182
 int. 227
 peak 264
Max. output (kW)  cont. 11.0
 int. 13.0
Max. pressure
drop(MPa)
 cont. 14
 int. 17.5
 peak 22.5
Max. flow (L/min)  cont. 60
 int. 75
 Weight (kg) 5.9

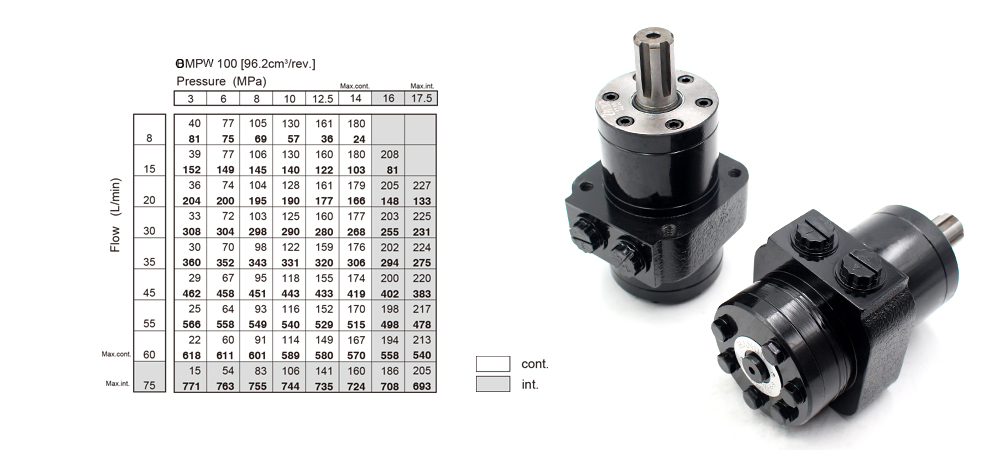

Performance Data:
