TE 0375 Hydraulic motor


TE 0375 Hydraulic motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.



Characteristic features:

* Advanced manufacturing devices for the Geroler gear set, which use low pressure

of start-up, provide smooth and reliable operation and high efficiency.

* The output shaft adapts in needle roller bearings that permit high axial and radial

forces. The case can offers capacities of high pressure and high torque in the wide of


* Advanced design in high speed distribution flow, which can automatically

compensate in operating with high volume efficiency and long life , provide smooth and

reliable operation.

* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster

than shaft speed. It make the distribution in a high precision reduces life-cycle cost,

maintain high volume efficiencies and can run very smoothly at low speed, gear box not




Main Specification

Geometric displacement (cm3/rev.) 370
Max. speed (rpm)  cont. 152
 int. 199
Max. torque (N•m)  cont. 439
 int. 613
Max. output (kW)  cont. 7.6
 int. 14
Max. pressure
 cont. 9
 int. 12.5
 peak 16
Max. flow (L/min)  cont. 57
 int. 75

* Continuous pressure:Max. value of operating motor continuously.

* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.

* Peak pressure:Max. value of operating motor in 0.6 second per minute.

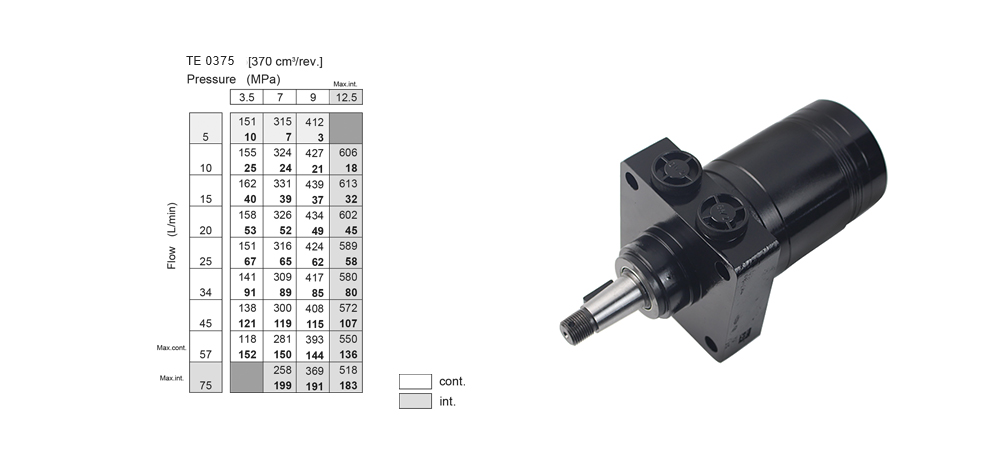

Performance Data
