Parker TE 375 Hydraulic motor

2023-05-11

Parker TE 375 Hydraulic motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.





Characteristic features:

* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up,

provide smooth and reliable operation and high efficiency.

* The output shaft adapts in needle roller bearings that permit high axial and radial forces. The

case can offers capacities of high pressure and high torque in the wide of applications.

* Advanced design in high speed distribution flow, which can automatically compensate in operating

with high volume efficiency and long life , provide smooth and reliable operation.

* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than shaft

speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume

efficiencies and can run very smoothly at low speed, gear box not required.





Main Specification

Geometric displacement (cm3/rev.) 370
Max. speed (rpm) cont. 152
 int. 199
Max. torque (N•m) cont. 439
 int. 613
Max. output (kW) cont. 7.6
 int. 14
Max. pressure (MPa) cont. 9
 int. 12.5
peak 16
Max. flow (L/min) cont. 57
 int. 75

* Continuous pressure:Max. value of operating motor continuously.

* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.

* Peak pressure:Max. value of operating motor in 0.6 second per minute.

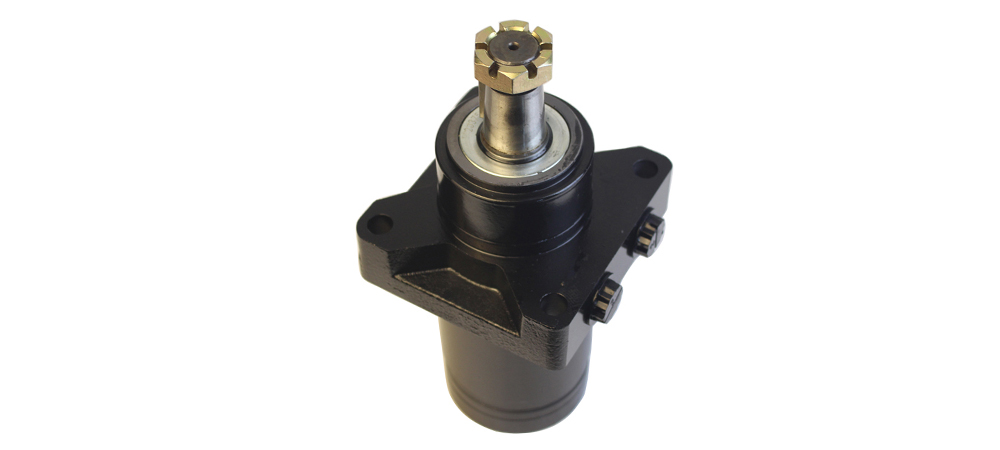

   The picture may not match the actual object and is for reference only.
