TE 0100 Hydraulic motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
* Advanced manufacturing devices for the Geroler gear set, which use low pressure
of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in needle roller bearings that permit high axial and radial
forces. The case can offers capacities of high pressure and high torque in the wide of
* Advanced design in high speed distribution flow, which can automatically
compensate in operating with high volume efficiency and long life , provide smooth and
* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster
than shaft speed. It make the distribution in a high precision reduces life-cycle cost,
maintain high volume efficiencies and can run very smoothly at low speed, gear box not

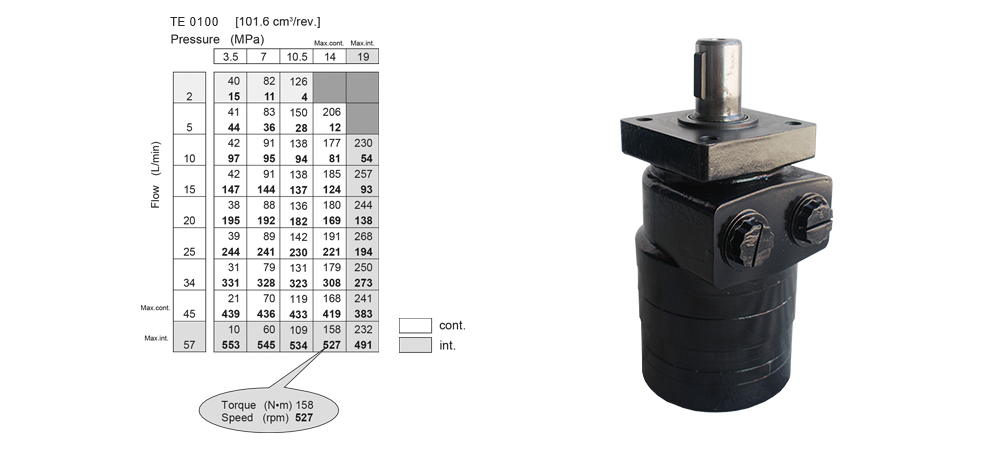

|Geometric displacement (cm3/rev.)||101.6|
|Max. speed (rpm)||cont.||439|
|Max. torque (N•m)||cont.||191|
|Max. output (kW)||cont.||7.9|
|Max. flow (L/min)||cont.||45|
* Continuous pressure:Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
